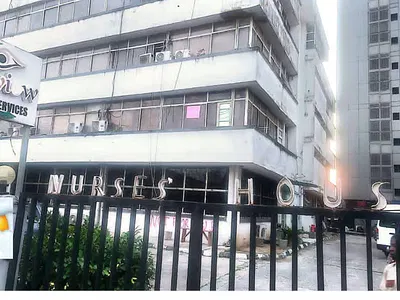

Plaza / complex / mall for sale
Victoria Island (VI), Lagos
Area of site: 1361.59sqm.
area covered by building: 468.02sqm.
percentage area covered by building: 38.80%.
height of building: 62.77m.
total building area (roof and helipad inclusive):14,704.08sqm
site parking-30 slots on site
spaces on parking floors: 82 slots+
15 floors + 1 basement (-2.5m below
ground)
- reinforced concrete structure, pile
foundation, secant pile retained site for
safety of adjoining sites with shallow
foundations, and structural integrity of the
basement.
- piling system, secant piles: 235 no.
bored piles: 65no.
- ramped split-level parking floors
- aluminium clad external wall-finish
- at the main entrance into reception of the
building is an automated sliding door
2960mm wide with 2 additional swing
doors (1000mm wide each).
- curtain wall cladded front
façade, glass walled lobby
with 3 passenger lifts and
glass encased staircase
- glazed italian porcelain floor
tile finish on all floors and
main staircase
- unglazed non-slip tiles in
service areas.
- granite slab entrance steps
- metallic ceiling finish in lobby and offices
i. 1st floor (parking floor); there are 14 parking lots.
ii. 2nd floor to 5th floor (parking floor) ; there are 15 parking lots per floor.
iii. mezzanine floor ; there are 8 parking lots
iv. in front of the building (both inside and outside
of the site); there are 17 parking lots
v. inside the site (both left and right of the site) ;13 parking lots.
vi. total car park spaces is 112
vii. additional parking available on the ramps depending on whether it is a one way or two
way ingress and egress system. for a one way system additional 20 car park spaces available.
- service lift and staircase pressurized for fire safety with fire doors on all floors
- sprinkler system with fire alarms, dry and wet mains
- borehole and water storage and treatment plant
- cctv and access control
- roof top helipad and terrace
- cleaning cradle system for façade maintenance
gross area
- basement area: 619.3sqm.
- ground floor area: 674.2sqm
- 1st-5th typical: 851sqm.
- mezzanine floor: 439.6sqm.
- 6th-14th typical: 7,686sqm
lettable area:
- gf: 335sqm.
- 6th-14th: 5877sqm.
- penthouse- 450sqm
- total lettable area: 6662sqm.
sewage treatment plant:
- complete with all equipment and items
such as, air blowers, lift pumps, recycling
pumps, air lines and diffusers, sewage lift
and slug lines, chlorination with metering pump.
- complete underground - activated sludge system with 2no. retention/lift stations
with a total capacity of 45,000ltrs.
- water treatment plant: complete with pipe works and all items such as, aeration,
sedimentation, and raw water piping and accessories 10m3/hr.
server room
i. a dedicated central server room is provided on the pent floor
ii. spacious enough to accommodate 6 to 8 dual-rack apc infrastruxure
units, ups, with high enough headroom for cooling and water distribution system
iii. passage (duct) had been incorporated to interconnect the telecoms
rooms on each of the office floor to the server room in the basement.
iv. passage had been allowed for it and telecommunications cables (fiber
cables, etc) from public service into the server room
v. each office floor has 5.3sq meters for communication equipment.
vi. the electrical room on each office floor is also spacious enough to
accommodate ups
vii. dedicated 2gang 13a switch socket outlets had been pre-wired onto
a dedicated electrical distribution board on each floor to be supplied
by ups
viii. data and voice cat 6 cable is being laid from the telecoms room on
each floor to numerous data & voice outlets
ix. being open office plan; spaces for ict training lab, ict store and ict
lab/workshop could be partitioned as required
borehole
- already sunk
- with a delivery rate of 24 cubic meter at
over 220m depth
water storage
- 45,000ltrs capacity -underground
- 26,000ltrs capacity -- overhead (at
rooftop)
- total capacity: 71,000ltrs
- 2no. transfer pumps (duty & standby)
- rating of each:20hp, 25m3/hr @ 85mh
airconditioning system
- air conditioning: daikin vrv system (variable refrigerant outdoor unit with 4 ways blow
ceiling mounted )
- floor by floor service
elevators
- 3no. 10passenger lifts (to stop on
all floors, except basement)
- 1no. 1,600kg goods lift (to stop on
all floors, except basement)
- 1no. 1,500, 1-stop scissors table
lift (to transport goods, plants and
equipment from ground floor to
basement and vice versa)
helipad
- can support 4 -- 6 passenger
helicopter with max take --
off or landing weight of
30kn, equivalent of 3000kg
or 6613ibs
- helipad lights are installed
which act as beckons for
landing helicopters
price
n15,000,000,000.00
fifteen billion naira ...
